Solutions

These machines promotes high efficiency in packing works by feeding bags horizontally into the machine. Durable and beautiful sealing, durable sealing is made as indirect heating method is adopted and enforced freezing is give. Sealing Width 10 to 12mm Sealing Speed Variable 0 to 10 Mtr./min Max. Conveyor Load 2 Kg Conveyor Belt Width 135mm Temp. Range 0 - 250C Dim. LxWXH(mm) 850 * 370 * 270mm Power 50HZ 10 200v/5A Approx Weight 23 Kg Packing Material Any heat sealable matrial like PP, LD, LLDP, HMHD, Alu. Foil and any laminated 2 or 3 layer pouches. Vertical Model Height Adjustments(mm) 100 to 300

The Pro series & pro series VFFS machine can make centre sealed pouches, 3 side sealed pouches 4 side sealed pouches & gusset pouches from a roll of packaging materials of any heat-sealable laminated which can be printed or non-printed from.Heat-sealable laminated can be a single layer B.O.P.P two layer, three layers or alumininum foiled types..

The Eco series & eco series VFFS machine can make centre sealed pouches, 3 side sealed pouches 4 side sealed pouches & gusset pouches from a roll of packaging materials of any heat-sealable laminated which can be printed or non-printed from.Heat-sealable laminated can be a single layer B.O.P.P two layer, three layers or alumininum foiled types..

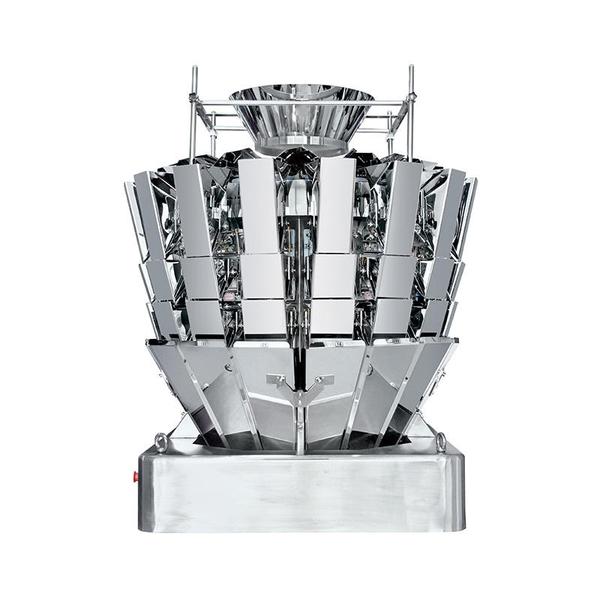

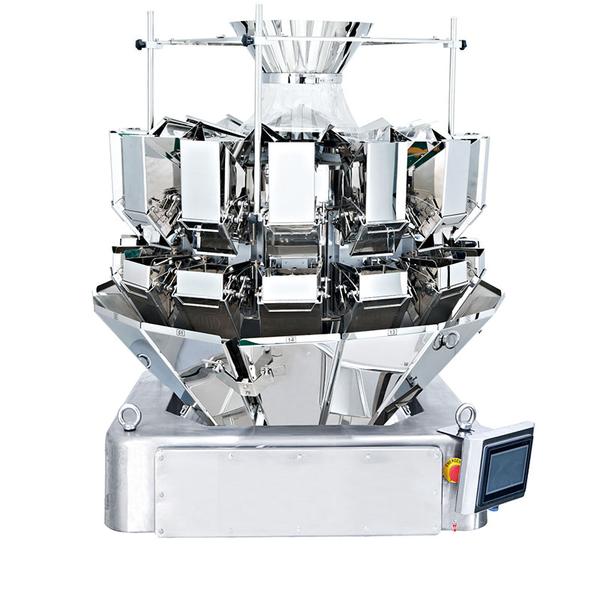

• S.S.304 Fabrication • 16 x 2 Bucket • Bucket Capacity 3.0Ltr. • 16 Load Cell • 16 Vibrator Coil & 1 Main • HMI-kinco Brand • Stand PP Powder Coated

• S.S.304 Fabrication • 14 x 2 Bucket • Bucket Capacity 2.5Ltr. • 14 Load Cell • 14 Vibrator Coil & 1 Main • HMI-kinco Brand • Stand PP Powder Coated

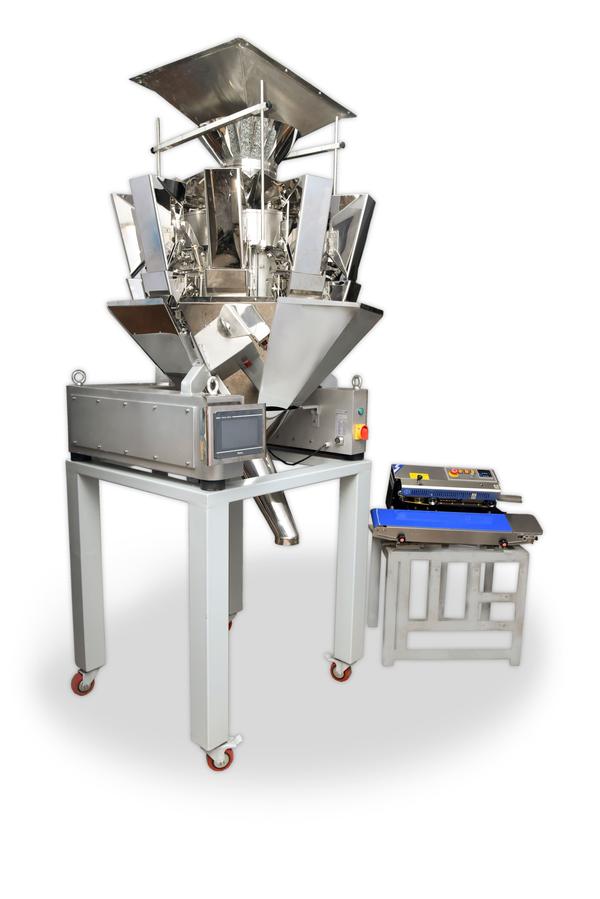

• S.S.304 Fabrication • 10 x 2 Bucket • Bucket Capacity 1.5Ltr. • 10 Load Cell • 10 Vibrator Coil & 1 Main • HMI-kinco Brand • Stand PP Powder Coated

The machine operate on the principle of volumetric syringe systems with a provision of volume adjustment. This machine can pack Pickles Grease, Fibers Chatnee, Gel and any paste form material. Capacity 5 to 15ml/20 to 60ml/40 to 100ml/100 to 250ml/ 250 to 500ml/ 500 to 1000ml Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 20mm to 450mm width 40mm to 290mm length Speed 08 to 40 pouches per min. Voltage 1/2 HP Motor, 22v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 350 Kg - 400 Kg M/c. Dim. LxWXH(mm) 750 * 650 * 1900mm Optional Batch Coding Device

The machine operate on the principle of volumetric syringe systems with a provision of volume adjustment. This machine can pack Pickles Grease, Fibers Chatnee, Gel and any paste form material. Capacity 5 to 15ml/20 to 60ml/40 to 100ml/100 to 250ml/ 250 to 500ml/ 500 to 1000ml Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 20mm to 450mm width 40mm to 290mm length Speed 08 to 40 pouches per min. Voltage 1/2 HP Motor, 22v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 350 Kg - 400 Kg M/c. Dim. LxWXH(mm) 750 * 650 * 1900mm Optional Batch Coding Device

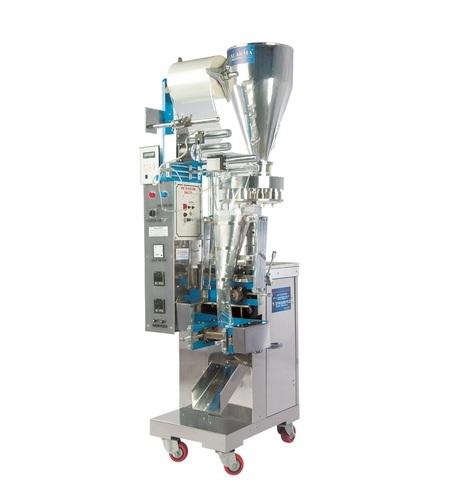

Pouch Capacity 10-50 grams, 50-200 grams, 200-400 grams, 600-1000 grams Output 25-45 BPM Filling Type Cup Filler Sealing Type Fin Seal (Center Seal/3 Side Seal) Packaging Materials Laminate/Any Heat Sealable Packing Materials Machine Weight 250 - 350 kg (Approx) Machine Division Width - 600mm,Length -1800 mm,Depth - 600 mm (Adjustable)

Pouch Capacity 10-50 grams, 50-200 grams, 200-400 grams, 600-1000 grams Output 25-45 BPM Filling Type Cup Filler Sealing Type Fin Seal (Center Seal/3 Side Seal) Packaging Materials Laminate/Any Heat Sealable Packing Materials Machine Weight 250 - 350 kg (Approx) Machine Division Width - 600mm,Length -1800 mm,Depth - 600 mm (Adjustable)

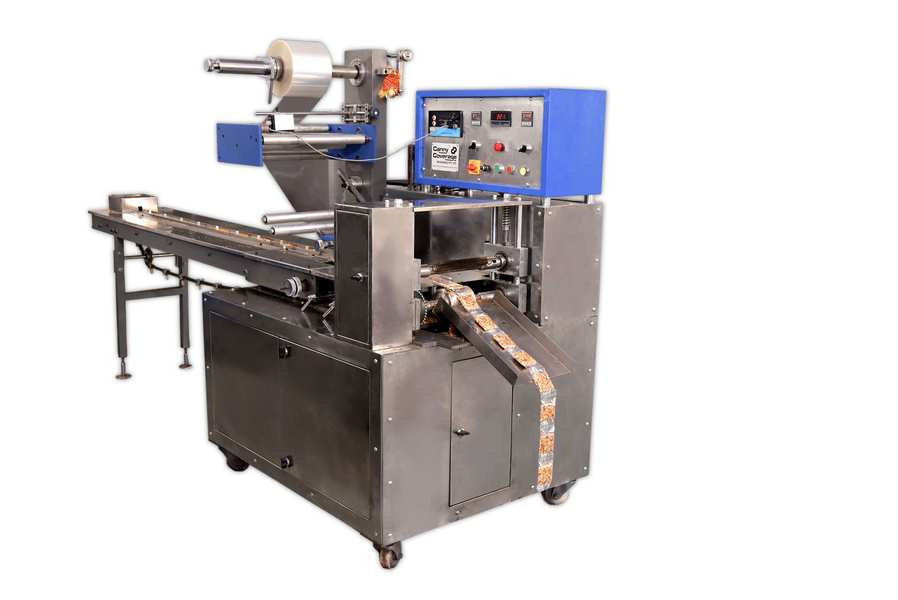

Suitable for packing Biscuits, Chocolates, Soaps, Stationary Item, Syringes, Ball Bearing and any other Rounded, Square Shaped Solid Products. Feeding System Automatic and Manual Sealing Type Centre seal / 4 side Packing Size Upto 300mm(L), 180mm(W), 100mm(H) Packing Speed 0-200 pouches per min, Variable Power (W) 3kW, 1HP AC with AC Drive Voltage (V/Hz) 220 AC(Single Phase) Heater Load 400W * 2 Nos., 200W * 2 Nos. Dim. LxWXH(mm) 1800 * 1080 * 1700mm Approx. Weight 700 Kg Optional Attachment Batch Coding Mahchine

TECHNICAL SPECIFACATION:- 1. Machine body covering in S.S.304 2. PRODUCT – Surgical Item 3. Speed – 0 to 100 Pouches per minutes (variable) 4. Temp. Controller – Multispan Make 5. Heater – High Density 6. Drive – Servo (Inovance Make) 7. Gears – EN8 Material 8. Proxy – Omron Make 9. HMI Panel 10.Motion Control Penal – Trio Make 11.I Mark Sensor – DK 20 12.Bearing – SKF Make 13.Gear Box – Varvale Make 14.Power – 220V. (3 Phase) 15.Total KW. – 3 KW. 16.Machine Dimension – H-1500mm x L-3500mm, W – 1050mm (Aproxx)
