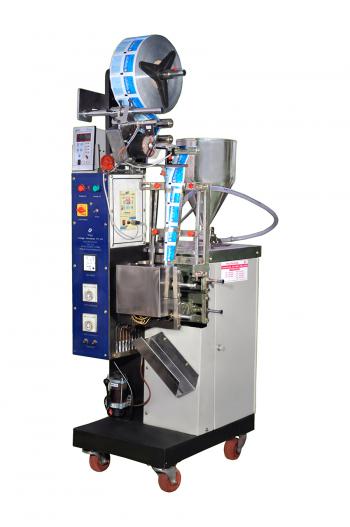

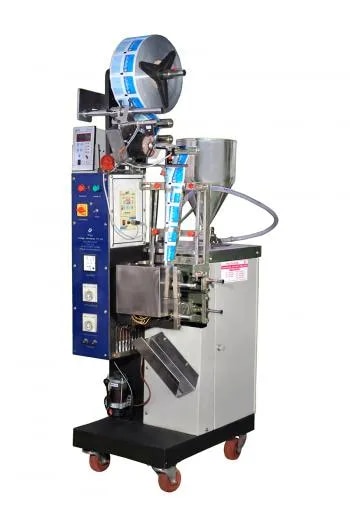

Mechanical Type Form And Seal Machine For Paste Packing
In stock
Description
The machine operate on the principle of volumetric syringe systems with a provision of volume adjustment. This machine can pack Pickles Grease, Fibers Chatnee, Gel and any paste form material.
Capacity 5 to 15ml/20 to 60ml/40 to 100ml/100 to 250ml/ 250 to 500ml/ 500 to 1000ml
Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal
Film Size 20mm to 450mm width
40mm to 290mm length
Speed 08 to 40 pouches per min.
Voltage 1/2 HP Motor, 22v, 50 Hz Single Phase
Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly
Approx. Weight 350 Kg - 400 Kg
M/c. Dim. LxWXH(mm) 750 * 650 * 1900mm
Optional Batch Coding Device
