Home Products Cup Filler FFS Machine
Pouch Capacity 10-50
Pouch Capacity 10-50
COD not available
Detergent Packing Machine

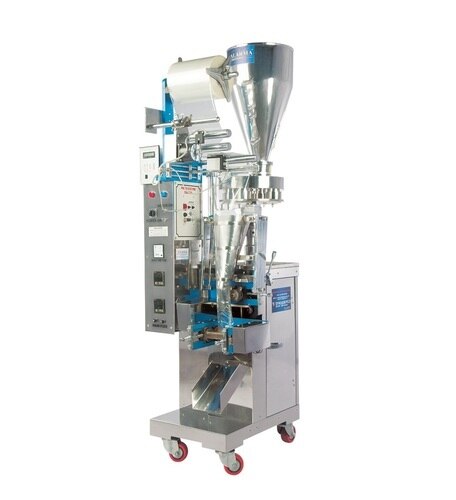

Cup Filler FFS Machine

Share with
Share this on :

Description

Product details

Pouch Capacity 10-50 grams, 50-200 grams, 200-400 grams, 600-1000 grams Output 25-45 BPM Filling Type Cup Filler Sealing Type Fin Seal (Center Seal/3 Side Seal) Packaging Materials Laminate/Any Heat Sealable Packing Materials Machine Weight 250 - 350 kg (Approx) Machine Division Width - 600mm,Length -1800 mm,Depth - 600 mm (Adjustable)

Keywords

Other Solutions

Related Solutions

PFS Economy model is an effective solution that offers great performance for standard premade pouch operations, perfect for medium & small scale productions. Pouch type  Premade Pouches(PM)  Standy  Four side seal(PM)  Three side seal (PM)  Centre seal(PM) Technical Specification Application:-Suitable for granules, powders, liquids, sauces, and other food industry items Operation Type:-Fully automatic; no manual operation required Control System :-Touch screen interface, PLC control Temperature Control:-Automatic sealing temperature compensation; precise temperature control Bag Type:-Prefabricated bags (composite film, pure aluminum, aluminum-plated, etc.) Sealing Type:-Heat seal (based on bag material) Measuring Range:-200g – 1000g Max Bag Dimensions:-Length: 400 mmWidth: 300 mm Packing Speed :-15 – 20 bags per minute Machine Dimensions:-Length: 1091 mm Width: 926 mm Height: 1343 mm Machine Weight :-365 kg Power Supply :-AC 220V / 50–60 Hz Total Power:-Consumption 2 kW
View Details
PFS ECONOMY MODEL
The rotary pick-fill-seal packing machine is a testament to advanced engineering and efficiency in packaging technology. With its seamless integration of picking, filling, and sealing functions, it delivers unparalleled speed and precision, minimizing manual intervention and reducing errors. TECHNICAL SPECIFICATIONS:  Applicable Bag Type: Flat bag, back seal bag, stand-up pouch, zipper bag  Workstation: 8 stations  Bag Size: Width: 80-240mm Length: 150-370mm  Filling Weight:< 1500g  Packing Speed:< 60 bags/min (depends on product packing condition)  Weight: 1000 kg  Overall Dimensions (LWH): 1724mm * 1486mm * 1600mm  Total Power: 2.62 kW (two heat sealing, without vacuum pump)  Driving Power: 380V three-phase five-wire 50HZ  Air Consumption: 20.4m³/min  PLC/HMI – Seimens  Pneumatics - Festo and airtac
View Details
CPFS-50 Rotary Pick Fill Seal/Premade Pouch Packing
Suitable to be packed any type of free flow granules packing in laminated packing materials. (Centre Sealing). PRODUCT : Granules GRAMMAGE : 5gms to 5kg. (Suggested 500gms to 5kg) BASIC MACHINE COMPLETE AS UNDER : Machine Height : 1300MM.W. x 2100MM.H. 1. M. S. Structure Fabricated Body with S S 304 covering 2. Motor Drive Assly - Innovance Make. Servo Motor- 1.5+1KV (Double Servo) 3. Gear Box – Bonfiglioliw (Model No. W63U19P80) B5 B3 Ratio – 10: 1 4. Paper Roll mounting Reel Bracket – 8 Nos. 5. Aluminium Roller-15 Nos. 6. Electric Control Panel - Motion Control (Innovance Make) 7. Electronic Pneumatic Control Panel – 7” HMI (Innovance Make) 8. Film Unwinding System - DC Motor 24VDC 9. Cam Setting Assly- - 12mm LN Gruve Bolt 10. Forming Collar Assly – S S 304 L 11. Temp. Controller Device – Autonics Make 12. Photocell - Panasonic 13. RFL Unit with Air Filter Lubrication Assly – Festo Make. 14. Festo Solenoids, Cylinders & Festo Pipe. 15. Rotary Switch - Kaycee, Indicating Lamp – L & T 16. Circuit Breaker -32A 3Ph Schindler Make 17. Contactors, Overload Relay – L & T 18. Step Down Transformer 24V Rectified DC 19. Air Remover. NOTE: Along with machine any one grammage Forming Collar available. YOUR SCOPE OF SUPPLY : • POWER SUPPLY : 440V x 3PH x 50Hz • MACHINE SIZE : 1300MMW X 1500MMD X 2100MM.H. MULTI HEAD MACHINE COMPLETE AS UNDER • S.S.304 L Fabrication • 14 x 2 Bucket • Bucket Capacity 1.5Ltr. • 14 Load Cell – Indian Make • 14 Vibrator Coil & 1 Main • HMI-kinco Brand • Grade – IP65 SPEED 20 to 60 PPM APPROX (As per gram) ACCURACY + 0.5%
View Details
MULTI HEAD WEIGH METRIC FORM FILL & SEAL MACHINE SERVO BASED
