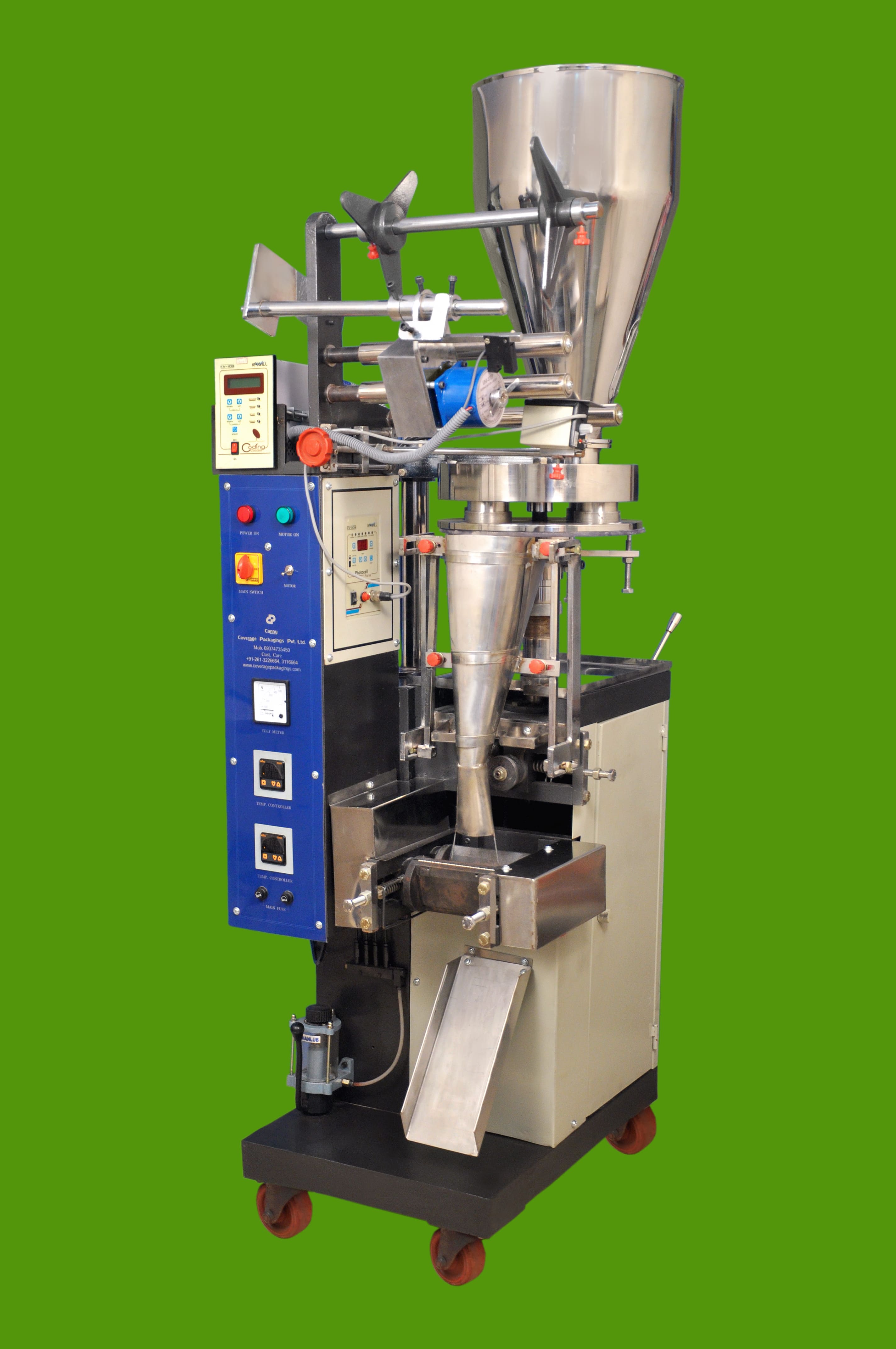

Mechanical Type Cup Based From Fill Seal Machine

The machine operate on the principle of volumetric cups with a provision of volume adjustment. On volumetric form fill and sealing machine are ideal for filling dry, free flowing products like Sugar, Salt, Tea, Detergent Powder, Namkeens(depend on grain size) Whole Spices, Rice, Pulses, Supari, Mukhwas, Dhana Dal, Tobacco Gutkha & any types of Granules.

Capacity 2 to 5g/5 to 20g/20 to 100g/100 to 250g/250 to 500g/500 to 1000g

Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal

Film Size 80mm to 450mm width,

any length can do

Speed 12 to 80 pouches per min.

Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase

Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly

Approx. Weight 380 to 450 Kg

Air Pressure 7 Kg

M/c. Dim. LxWXH(mm) 780 * 650 * 2350mm

Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor

Air Compressor 3 HP Double Piston
