namkeen packing machine

Capacity :- 20 to 1000gm sealing Type:- Centre seal or back side seal , 3 side seal , 4 side seal Film Size :- 160mm to 550mm Width, any length can do speed :- Depend on No. of Weighing Head Voltage :- 1/2 Hp ,220v , 50Hz Single Phase Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 600 to 1000kg Air Pressure :- 7 kg M/c. Dimension:- L:1500 x W: 1200 x H : 3200mm Optional :- Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement , Screw feed Conveyor Air Compressor :- 3HP Double Piston

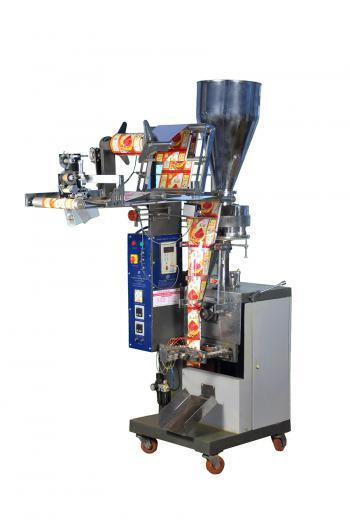

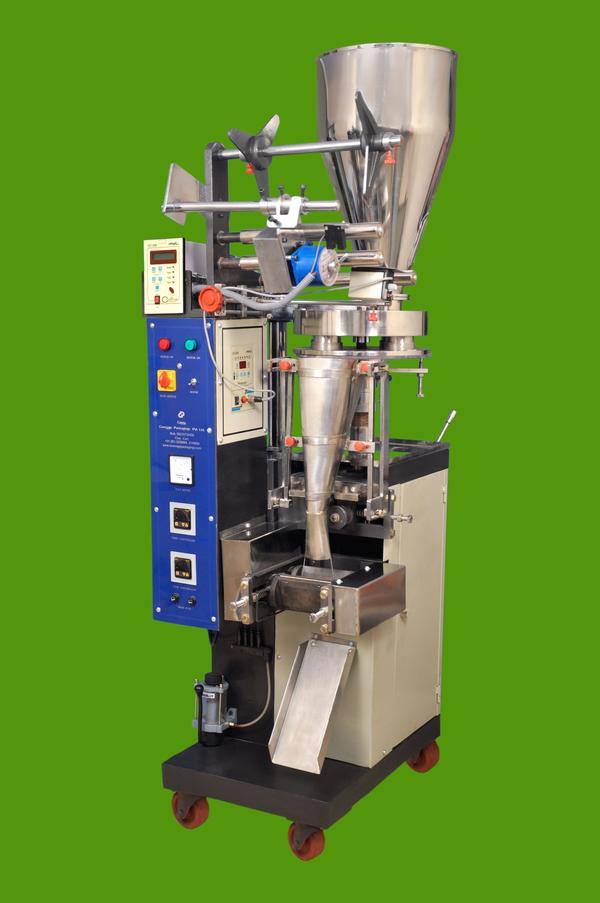

The machine operate on the principle of volumetric cups with a provision of volume adjustment. On volumetric form fill and sealing machine are ideal for filling dry, free flowing products like Sugar, Salt, Tea, Detergent Powder, Namkeens(depend on grain size) Whole Spices, Rice, Pulses, Supari, Mukhwas, Dhana Dal, Tobacco Gutkha & any types of Granules. Capacity 2 to 5g/5 to 20g/20 to 100g/100 to 250g/250 to 500g/500 to 1000g Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 80mm to 450mm width, any length can do Speed 12 to 80 pouches per min. Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 380 to 450 Kg Air Pressure 7 Kg M/c. Dim. LxWXH(mm) 780 * 650 * 2350mm Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor Air Compressor 3 HP Double Piston

The machine operate on the principle of volumetric cups with a provision of volume adjustment. On volumetric form fill and sealing machine are ideal for filling dry, free flowing products like Sugar, Salt, Tea, Detergent Powder, Namkeens(depend on grain size) Whole Spices, Rice, Pulses, Supari, Mukhwas, Dhana Dal, Tobacco Gutkha & any types of Granules. Capacity 2 to 5g/5 to 20g/20 to 100g/100 to 250g/250 to 500g/500 to 1000g Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 80mm to 450mm width, any length can do Speed 12 to 80 pouches per min. Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 380 to 450 Kg Air Pressure 7 Kg M/c. Dim. LxWXH(mm) 780 * 650 * 2350mm Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor Air Compressor 3 HP Double Piston

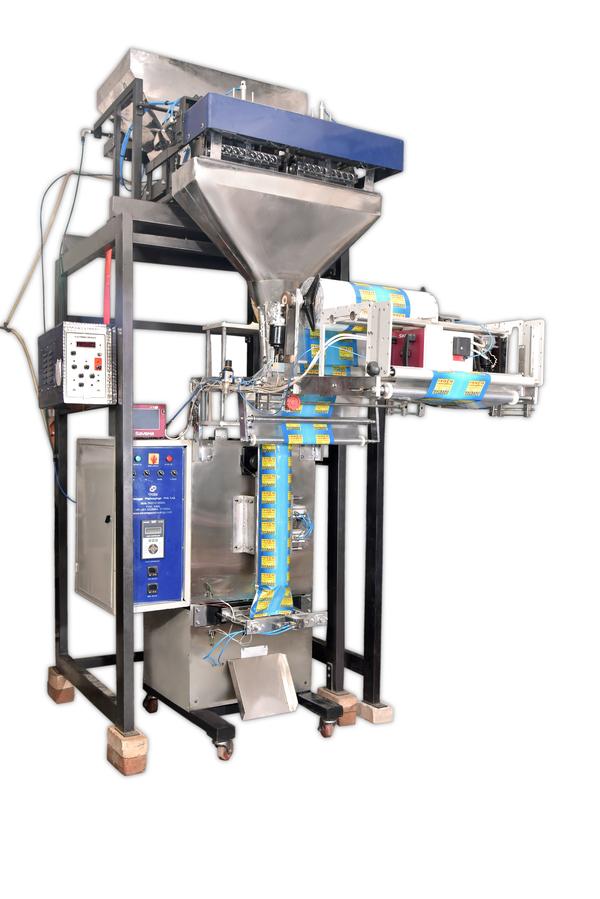

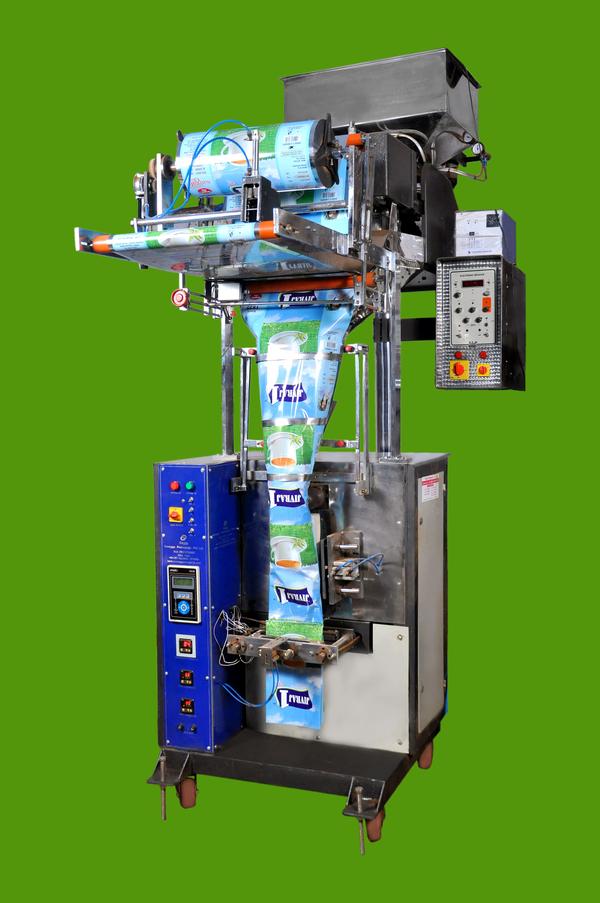

The machine operate on the principle of electric weigh metric system. On Weigh Metric Form Fill and Sealing Machine are ideal for filling dry, free flowing products like Sugar, Tea, Supari, Whole Spices, Rice, Pulses & all types of Namkeens, Fryms, Potato and Banana Chips etc. Capacity 20 to 1000g Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 160mm to 450mm width, any length can do Speed Depend on No. of Weighing Head. Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 600 to 1000 Kg Air Pressure 7 Kg M/c. Dim. LxWXH(mm) 15000 * 1200 * 3200mm Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor Air Compressor 3 HP Double Piston

The machine operate on the principle of electric weigh metric system. On Weigh Metric Form Fill and Sealing Machine are ideal for filling dry, free flowing products like Sugar, Tea, Supari, Whole Spices, Rice, Pulses & all types of Namkeens, Fryms, Potato and Banana Chips etc. Capacity 20 to 1000g Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 160mm to 450mm width, any length can do Speed Depend on No. of Weighing Head. Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 600 to 1000 Kg Air Pressure 7 Kg M/c. Dim. LxWXH(mm) 15000 * 1200 * 3200mm Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor Air Compressor 3 HP Double Piston
