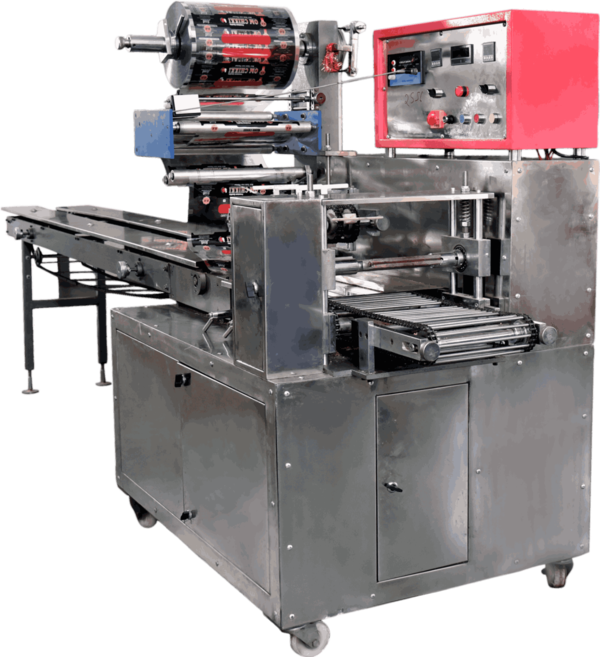

Feeding system :- Automatic Sealing Type :- Centre seal / 4 side Packaging size :- up to 300mm(L) , 180mm(W), 100mm(H) packaging speed :- 0-250 pouches per min. variable Packaging material:- Any Heat Sealable Laminated film & Bopp Film Power (W) :- 3kW , 1HP AC with AC Drive Voltage (V/Hz):- 220 AC ( Single Phase) Heater Load :- 400W x 2Nos., 200W x 2 Nos. Dim. LxWxH (mm) :- 1800 x 1080 x 1700mm Approx. Weight :- 700 Optional Attachment :- Batch Coding Machine

Feeding system :- Automatic and manual Sealing Type :- Centre seal / 4 side Packaging size :- up to 300mm(L) , 180mm(W), 100mm(H) packaging speed :- 0-200 pouches per min. variable Packaging material:- Any Heat Sealable Laminated film & Bopp Film Power (W) :- 3kW , 1HP AC with AC Drive Voltage (V/Hz):- 220 AC ( Single Phase) Heater Load :- 400W x 2Nos., 200W x 2 Nos. Dim. LxWxH (mm) :- 1800 x 1080 x 1700mm Approx. Weight :- 700 Optional Attachment :- Batch Coding Machine

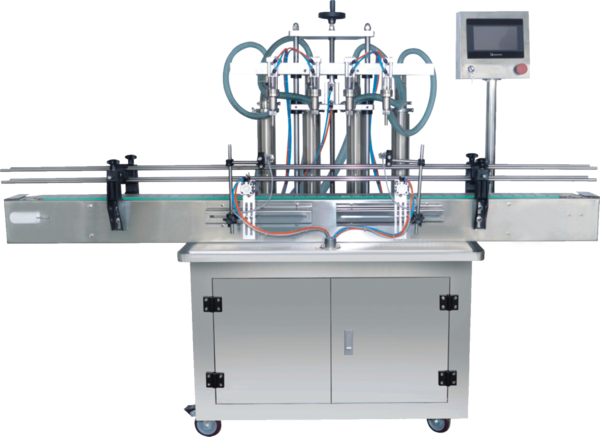

voltage:- 200V 50/60Hz Power:- 150W Air Pressure :- 0.4 - 06Mpa Filling Volume (ml) 10-100, /30 - 300/ 50 - 500/ 200-1500/ 300-2500/ 100-5000 Nozzle:- 2,4,6,8m Nozzle Optional Accuracy :- (+- 1%) Filling Speed :- 1000 - 1200 Bottles/Hrs Machine size :- L:2000mm x W: 1050mm x H : 1650mm

semi automatic piston based filling machine to fill various liquid like milk, Mineral Water , Butter milk, 2T oil, Coconut Oil, Mango Ras , / jar/Pouch filling Range:- 5 to 15ml / 20 to 60ml / 40 to 100ml / 100 to 250ml / 200ml to 500ml / 500ml to 1000ml speed:- as per filling quantity

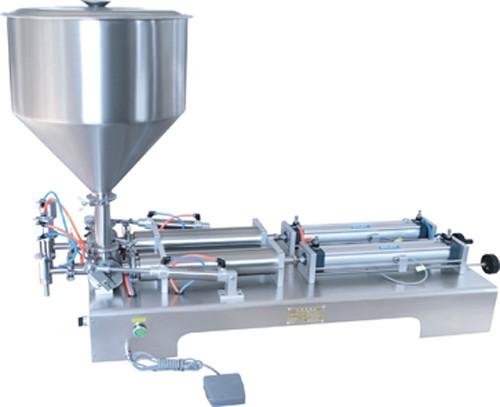

Machine Type Automatic Voltage 220 V Country of Origin Made in India Product Description We are the well renowned brand and providing the services of stand up pouch, steam shrink tunnel service, pouch packing machine, band sealer and all the products are of good quality.

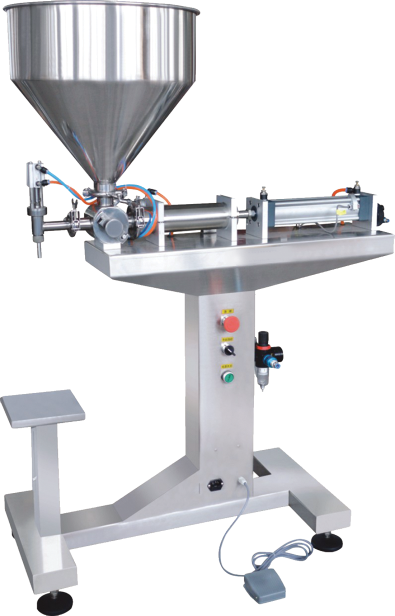

Automation Grade Semi Automatic Filling Capacity 50-1000 mL Product Description · This pneumatic filling machine is of wide applicability. It is suitable for filling food trades (dips, mayonees, etc); Cosmetics (shampoo, shower gel); daily health product (toothpaste); Oils etc. · Filling Precision can up to +-1% · Easy to adjust filling volume · Easy to operate, easy to maintain · Adopt pneumatic and high quality elements · With manual and semi-automatic operation · Easy to dismantle and install, easy to clean · Horizontal filling machine. Pedal control available. Automatic and manual switch, Emergency stop switch, so you could stop the machine at any time instantly. · High accuracy filling???Filling volume and speed can be regulated. Semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume · Simple and reasonable structure, easy operation. · All the parts that will contact the materials were made of 304 SS, large-scope chrome plating structural parts, effectively prevent rust and stuck.

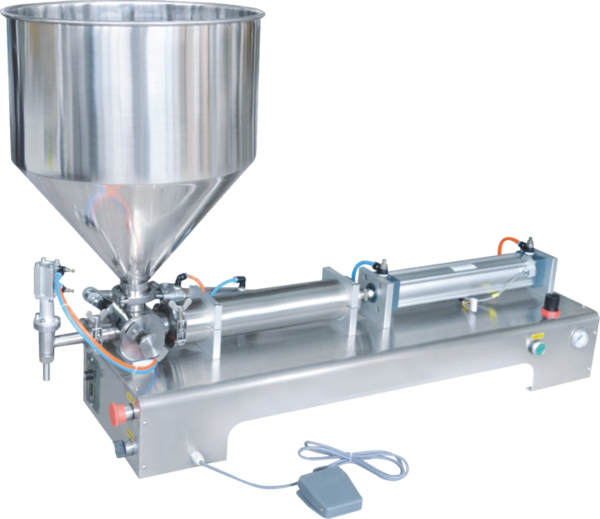

Machine Type Semi-Automatic Automation Grade Semi Automatic Filling Capacity 50-1000 mL Product Description · This pneumatic filling machine is of wide applicability. It is suitable for filling food trades (dips, mayonees, etc); Cosmetics (shampoo, shower gel); daily health product (toothpaste); Oils etc. · Filling Precision can up to +-1% · Easy to adjust filling volume · Easy to operate, easy to maintain · Adopt pneumatic and high quality elements · With manual and semi-automatic operation · Easy to dismantle and install, easy to clean · Horizontal filling machine. Pedal control available. Automatic and manual switch, Emergency stop switch, so you could stop the machine at any time instantly. · High accuracy filling???Filling volume and speed can be regulated. Semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with one-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume · Simple and reasonable structure, easy operation. · All the parts that will contact the materials were made of 304 SS, large-scope chrome plating structural parts, effectively prevent rust and stuck.

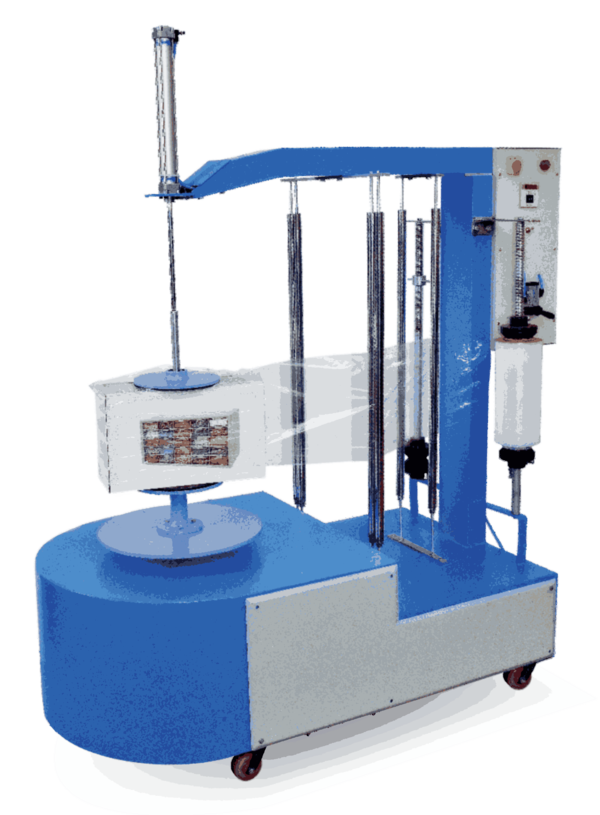

Automation Grade Automatic Packaging Type Cartoon Power 1 Phase, 220 V, 50 Hz, 1.0 kW Phase Single Carriage Motor 0.75 kW Packaging Size (H) 2400 mm or 2600 mm Usage/Application Industrial I Deal In New Only Product Description Moving ahead in this cutting-edge competition as a reliable organization, we are providing Orbital wrapper machines. Specially designed for packing small and medium sized object packed in cartoon box. This machine is widely suitable for light weight product. Cycle cause capability. 0-12 RPM adjustable by frequency changer. Pneumatic top plate FEATURES: PLC control system. Film carriage can up-down to suit different height products. Power pre-stretch 250%. Film delivery variable speed by separate AC Drive Motor.

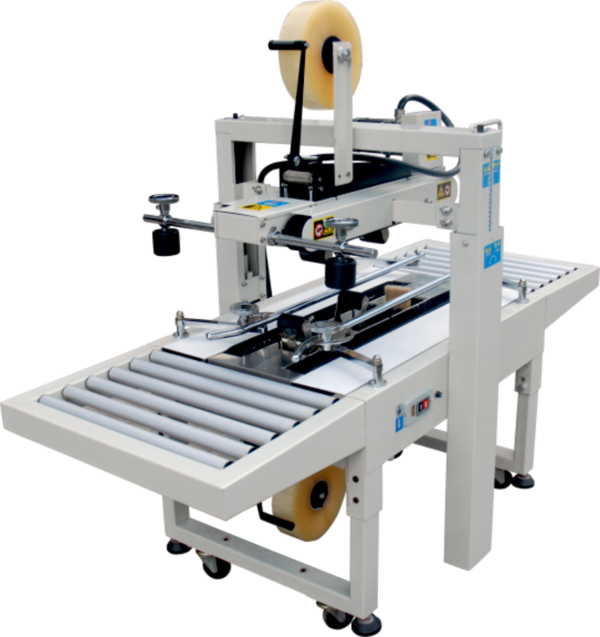

Functions Tapping Automation Grade Semi-Automatic Product Description Features : This machine is useful for high speed Taping / Sealing of Cartons, from Top & Bottom both together. Therefore it has a double motor drive, for simultaneous box sealing from top/bottom. The machine is equipped with Rollers, for smooth movement of boxes. Up down movement of the sealing assembly is by manual hand rotary crank. Different Box sizes can be easily accommodated. The box to be sealed is put on the in-feed rollers & given a gentle push, when the motorized conveyor takes over & starts pulling the carton forward. Here the top & bottom tape dispensers stick the BOPP type self adhesive tape onto the Top & Bottom flaps of the cartons simultaneously along with rollers pressing the tape for a tight seal. When the taping is over, the cutter blades cut-off the tape & the sealed cartons pass through to the out-feed rollers for delivery. After the sealed box is discharged, it is ready for the next box. Also you can adjust the height and width for different cartons very easily.

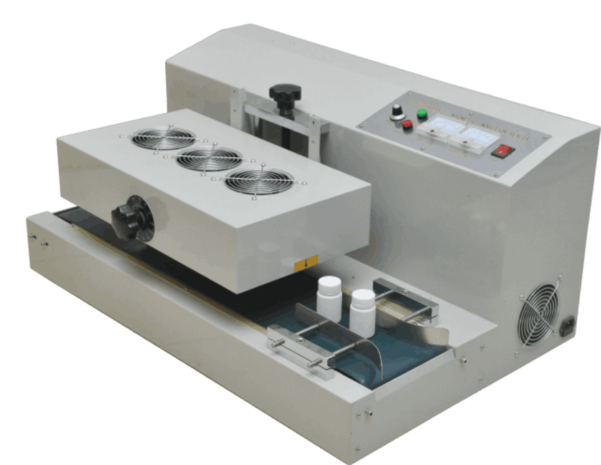

External Dimension:- L-1150mm x W- 480mm x H - 400mm voltage:- V/Hz - AC 220/50 110/50 Power:- 1500W Sealing Diameter (mm) :- (20mm -50mm), (50mm-130mm) Available Height :- 40-200 Speed (mm) :- 0-10 Production Capacity (pcs/min) :- 100 ( 40mm flat capped and PE Bottle) Weight:- 38kg

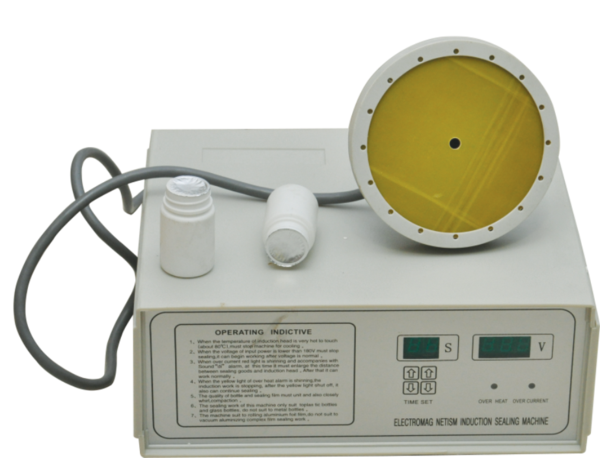

Capacity 0-50 pcs/min Power 750 W Machine Size (L x B x H) 340 * 290 * 150 mm Machine Weight 5 Kg Sealing Diameter 20-100 mm Voltage 110/220 V ( 50-60 Hz) Product Description In order to cater the variegated demands of our precious clients, we are offering an excellent quality range of Induction Sealing Machine or cap sealing machine Features: Precisely engineered Smooth functionality Low maintenance

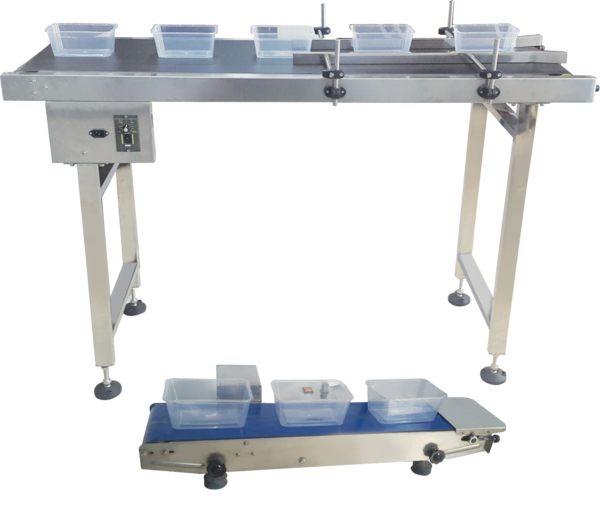

voltage :- 220/50 1 hp motor power (w) :- 60 watts A/C Variable Speed :- 0-15 meter/per min ( speed Adjustable) max Loading weight (kg) :- less then 50 kg length & Weight (mm):- L-1500mm x W-400mm x 750mm Distance to Floor :- 750mm Dimension :- 1500mm x 400mm x 750mm net weight (kg) :- 19kg
