The Eco series VFFS machine can make center sealed pouches , 3 side sealed pouches 4 side sealed pouches & gusset pouches from a roll of packaging materials of any heat-sealable laminate which can be printed or non-printed form. Heat-sealable laminate can be of a single layer B.O.P.P. Two layer, Three Layer or Aluminum Foiled type... The Eco series Bagger is an ideal pneumatic bagger to pack various product at a very high speed. this bagger is suitable to pack any material in a form of fine , small or big, even & uneven Granules, powders, Confectioneries, pesticides etc.. Silent Features 1:- Complete PLC based Pneumatic Automation system 2:- Advance use Friendly HMI (Touch screen) Operation 3:-Variable Speed for Highest Production 4:- Digital Programmable punching & Cutting 5:- Separate Pneumatic Panel for custom pressure setting 6:- PLC Based air Pressure Monitor System 7:- Variable Speed Conveyer 8:- Long life cutting Blade

Capacity :- 20 to 1000gm sealing Type:- Centre seal or back side seal , 3 side seal , 4 side seal Film Size :- 160mm to 550mm Width, any length can do speed :- Depend on No. of Weighing Head Voltage :- 1/2 Hp ,220v , 50Hz Single Phase Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 600 to 1000kg Air Pressure :- 7 kg M/c. Dimension:- L:1500 x W: 1200 x H : 3200mm Optional :- Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement , Screw feed Conveyor Air Compressor :- 3HP Double Piston

Capacity :- 10 to 100gm / 50 to 200gm/ 200 to 500gm/ 500 to 1000gm sealing Type:- Centre seal or back side seal , 2 side seal , 4 side seal Film Size :- 120mm to 450mm Width, any length can do speed :- 10 to 50 pouches per minute Voltage :- 2.5 Kw ,3 Phase 440v 50Hz Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 450kg Air Pressure :- 7 kg M/c. Dimension:- L:1760 x W: 900 x H : 2130mm Optional :- Batch Coding Device, Level Sensor Device, Screw feed Conveyor Air Compressor :- 3HP Double Piston

Capacity :- 10 to 100gm / 50 to 200gm/ 200 to 500gm/ 500 to 1000gm sealing Type:- Centre seal or back side seal , 2 side seal , 4 side seal Film Size :- 120mm to 450mm Width, any length can do speed :- 10 to 50 pouches per minute Voltage :- 2.5 Kw ,3 Phase 440v 50Hz Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 450kg Air Pressure :- 7 kg M/c. Dimension:- L:1760 x W: 900 x H : 2130mm Optional :- Batch Coding Device, Level Sensor Device, Screw feed Conveyor Air Compressor :- 3HP Double Piston

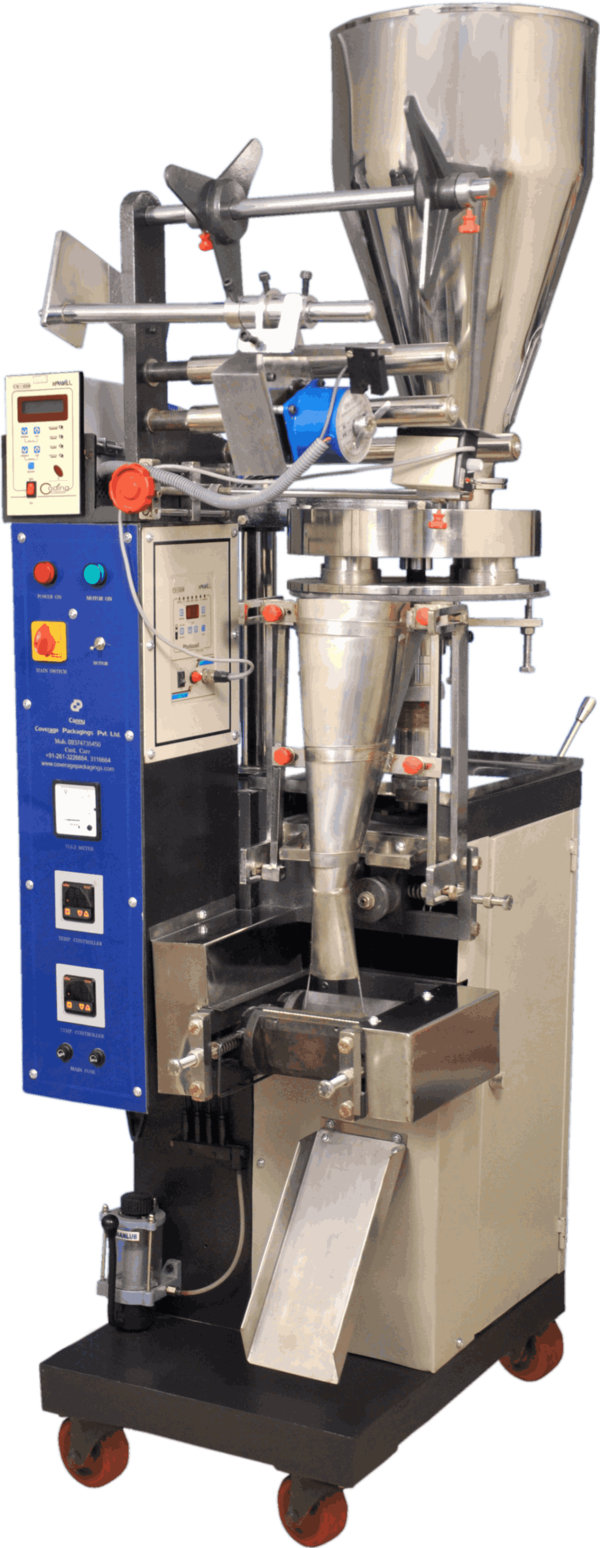

Capacity :- 2 to 5gm / 5 to 20gm/ 20 to 100gm/ 100 to 250gm/ 250 to 500gm/ 500 to 1000gm sealing Type:- Centre seal or back side seal , 3 side seal , 4 side seal Film Size :- 80mm to 450mm Width, any length can do speed :- 12 to 80 pouches per minute Voltage :- 1/2 HP Motor , 22v , 50Hz Single Phase Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 380kg - 450kg Optional :- Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement , Screw feed Conveyor Air Compressor :- 3HP Double Piston https://youtu.be/_aHvdCV0zmE

Capacity :- 2 to 5gm / 5 to 20gm/ 20 to 100gm/ 100 to 250gm/ 250 to 500gm/ 500 to 1000gm sealing Type:- Centre seal or back side seal , 3 side seal , 4 side seal Film Size :- 80mm to 450mm Width, any length can do speed :- 12 to 80 pouches per minute Voltage :- 1/2 HP Motor , 22v , 50Hz Single Phase Packing Material :- Any Heat sealable laminated film such as polyester / polypaper / poly, Glassine / poly, Polyester ,/ Met / Poly, Polyester / Foil/ Poly, BOPP/ Foil / Poly Approx. Weight :- 380kg - 450kg Optional :- Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement , Screw feed Conveyor Air Compressor :- 3HP Double Piston https://youtu.be/vSwvlBIPeCg

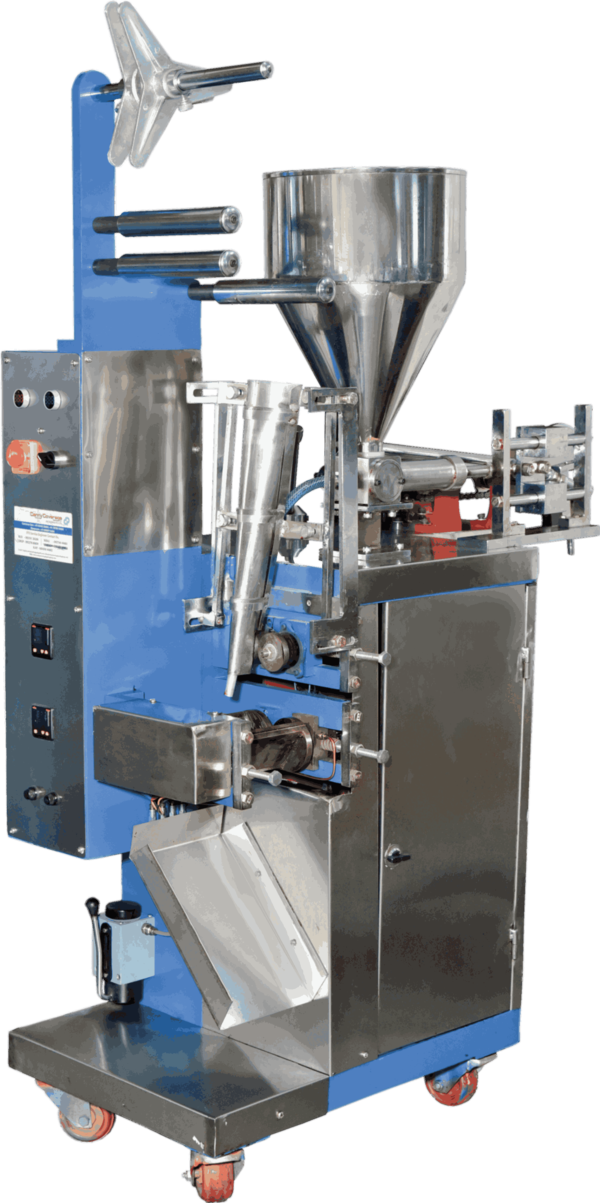

Capacity:- 5 to 15 ml / 20 to 60ml / 40 to 100ml / 100ml to 250ml / 250 to 500ml / 500 to 1000ml Sealing :- Centre seal or back side seal , 3 side seal , 4 side seal Film Size:- 20mm to 450mm width / 40mm to 290mm Length Speed :- 08 to 40 pouches per min Voltage :- 1/2 HP motor , 22v 50Hz Single Phase Approx. Weight :- 350kg -400kg M/c Dimension :- L:750 x W :650 x H : 1900mm https://youtu.be/Bn8BYOQdWVE

Capacity:- 5 to 15 ml / 20 to 60ml / 40 to 100ml / 100ml to 250ml / 250 to 500ml / 500 to 1000ml Sealing :- Centre seal or back side seal , 3 side seal , 4 side seal Film Size:- 20mm to 450mm width / 40mm to 290mm Length Speed :- 08 to 40 pouches per min Voltage :- 1/2 HP motor , 22v 50Hz Single Phase Approx. Weight :- 350kg -400kg M/c Dimension :- L:750 x W :650 x H : 1900mm https://youtu.be/d_cUHQVZMTA

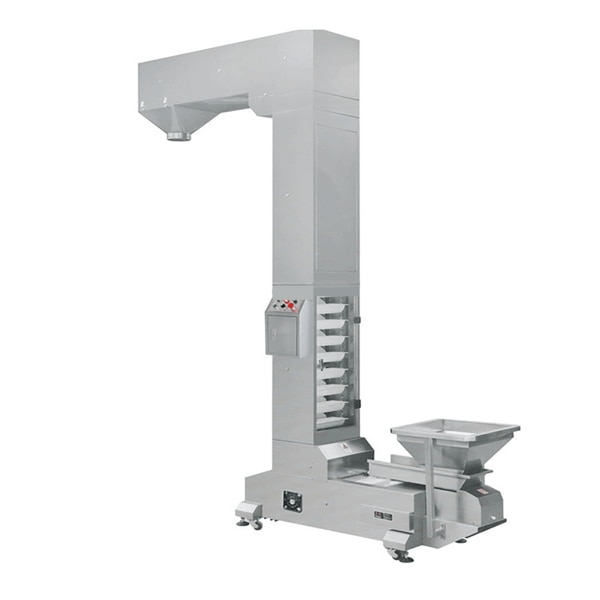

Designed to transport material upward. Equipped with zero vibration feeder for evenly distribution of material. made from M.S. Powder Coated & with Plastic Molded Bucket. Drive by 1HP Gear Motor with A.C. Drive

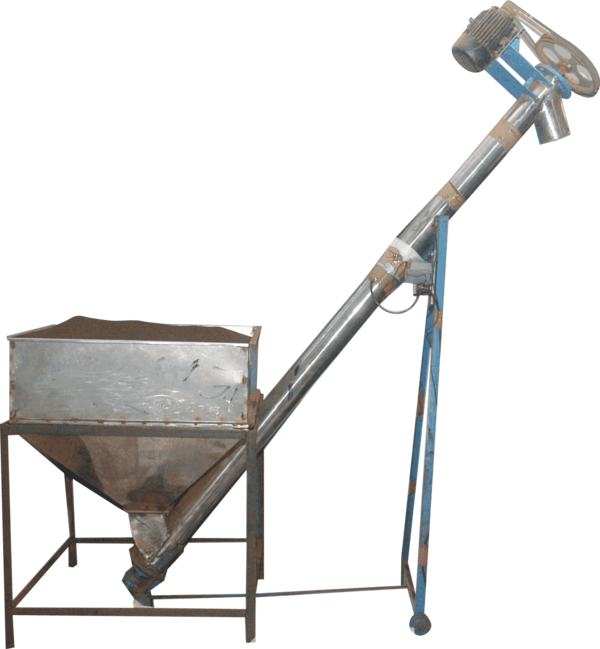

The screw conveyor can convey sports of powder material. It can be combined with the packing machine and also can be use separately. This elevator traveling the material ensuring no wastage & dropping of material during travel. complete machine made in stainless steel except of the motor and gearing. This elevator is very useful system for taking the material upward, distributing, feeding etc..

Semi Automatic auger based machine to drop power like Pharmaceutical Powder, chemical powder, ground spices, ground coffee colors, milk powder , Baby Food Powder, masala powder , flour , Maida, Besan etc. Dropping Range :- 50 to 500gm, / 500 to 1000gm,/ 500 to 5000gm speed :- 03 to 15 drop per minute

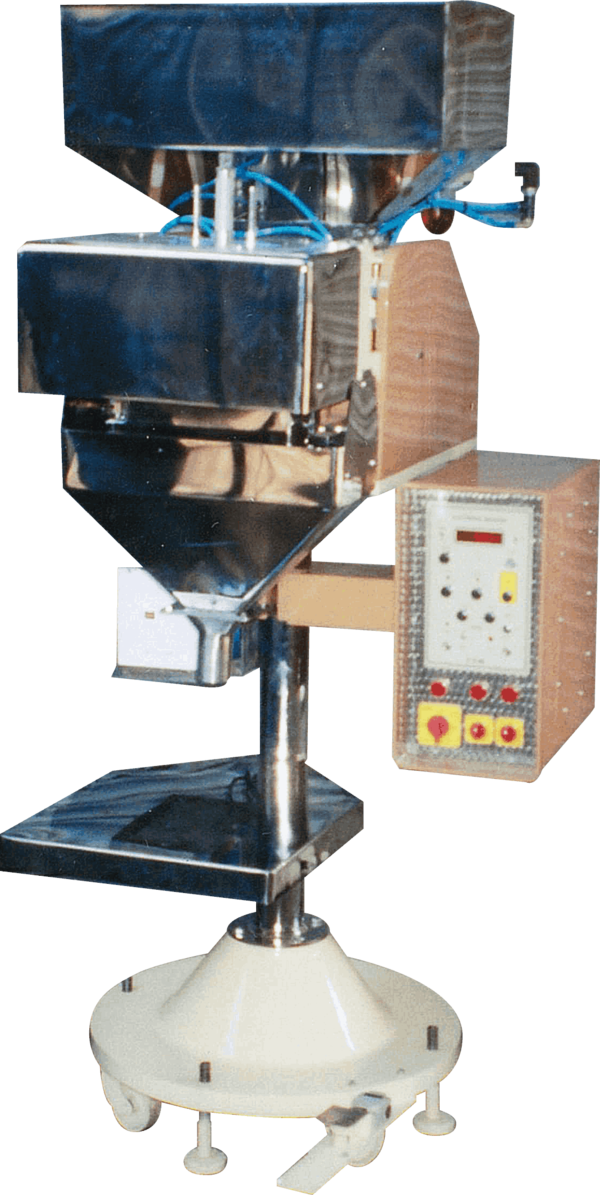

Semi automatic weigh based machine to drop dry, free flowing product like sugar ,tea, Supari, Rice, Pulses, Whole spices , all types of Namkeen & fryums, potato and Banana chips etc. Dropping Range :- 25 to 1000g speed:- Depend on Weighing Head
