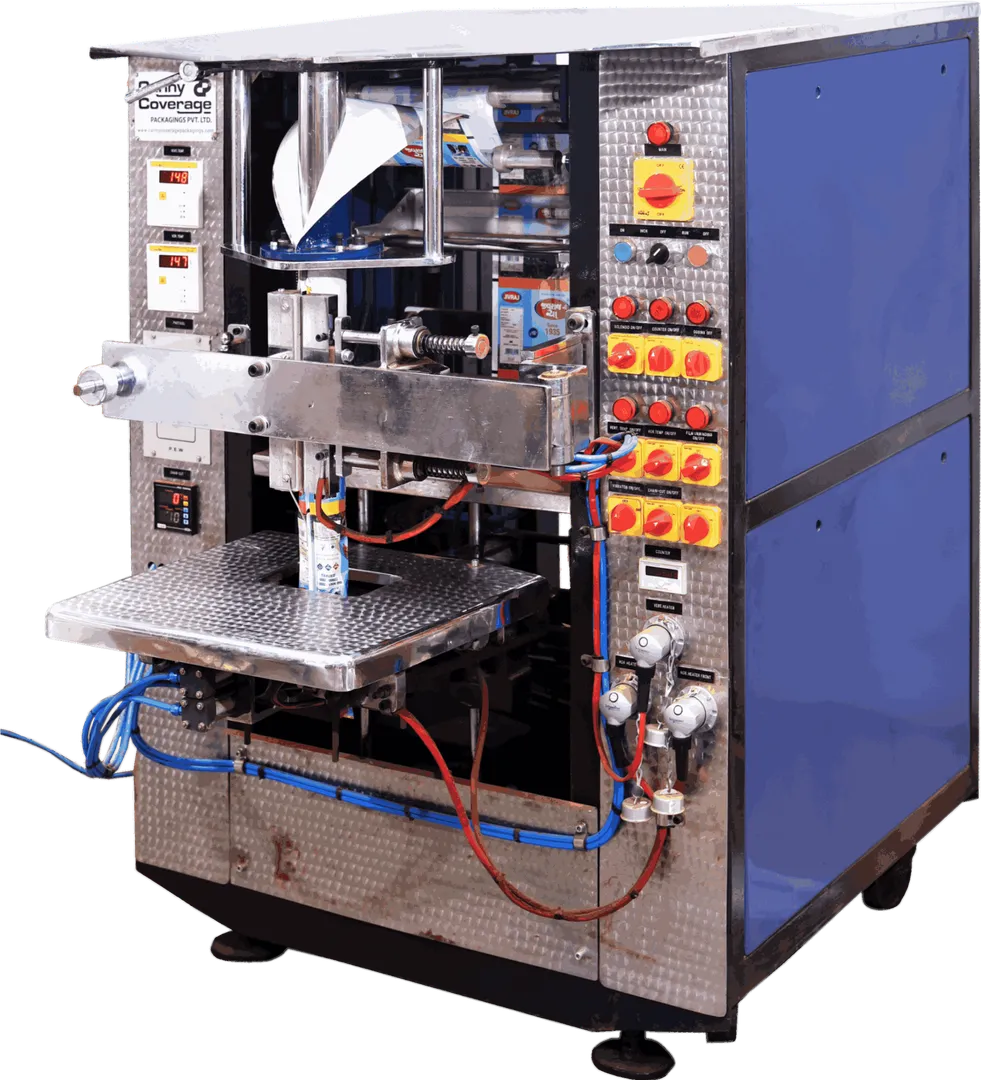

Pro Series vertical form fill and seal machine
Description
The Pro series VFFS machine can make center sealed pouches , 3 side sealed pouches 4 side sealed pouches & gusset pouches from a roll of packaging materials of any heat-sealable laminate which can be printed or non-printed form. Heat-sealable laminate can be of a single layer B.O.P.P.
Two layer, Three Layer or Aluminum Foiled type...
The Pro series Bagger is an ideal pneumatic bagger to pack various product at a very high speed. this bagger is suitable to pack any material in a form of fine , small or big, even & uneven Granules, powders, Confectioneries, pesticides etc..
Silent Features
1:- Complete PLC based Pneumatic Automation system
2:- Advance use Friendly HMI (Touch screen) Operation
3:-Variable Speed for Highest Production
4:- Digital Programmable punching & Cutting
5:- Separate Pneumatic Panel for custom pressure setting
6:- PLC Based air Pressure Monitor System
7:- Variable Speed Conveyer
8:- Long life cutting Blade
Bagger size - Small
max Laminate width :- 420mm/Customized
volume :- 1kg /1Ltr./Customized
Pro Series Output:- @120 Pouch per minute depending upon flow rate & Volume
Bagger size - Medium
max Laminate width :- 520mm/Customized
volume :- 2kg /2Ltr./Customized
Pro Series Output:- @55 Pouch per minute depending upon flow rate & Volume
Bagger size - Large
max Laminate width :- 700-800mm/Customized
volume :- 5kg /5Ltr./Customized
Pro Series Output:- @40 Pouch per minute depending upon flow rate & Volume
