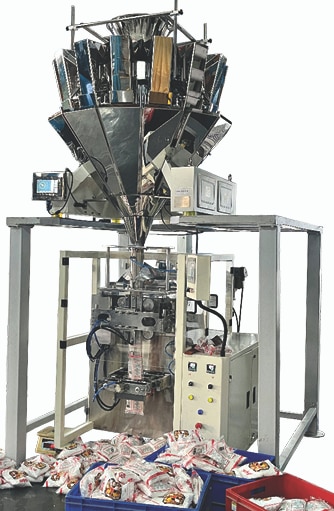

MULTI HEAD WEIGH METRIC FORM FILL & SEAL MACHINE SERVO BASED
Description
Suitable to be packed any type of free flow granules packing in laminated packing materials. (Centre Sealing).
PRODUCT : Granules
GRAMMAGE : 5gms to 5kg. (Suggested 500gms to 5kg)
BASIC MACHINE COMPLETE AS UNDER : Machine Height : 1300MM.W. x 2100MM.H.
1. M. S. Structure Fabricated Body with S S 304 covering
2. Motor Drive Assly - Innovance Make.
Servo Motor- 1.5+1KV (Double Servo)
3. Gear Box – Bonfiglioliw (Model No. W63U19P80) B5 B3 Ratio – 10: 1
4. Paper Roll mounting Reel Bracket – 8 Nos.
5. Aluminium Roller-15 Nos.
6. Electric Control Panel - Motion Control (Innovance Make)
7. Electronic Pneumatic Control Panel – 7” HMI (Innovance Make)
8. Film Unwinding System - DC Motor 24VDC
9. Cam Setting Assly- - 12mm LN Gruve Bolt
10. Forming Collar Assly – S S 304 L
11. Temp. Controller Device – Autonics Make
12. Photocell - Panasonic
13. RFL Unit with Air Filter Lubrication Assly – Festo Make.
14. Festo Solenoids, Cylinders & Festo Pipe.
15. Rotary Switch - Kaycee, Indicating Lamp – L & T
16. Circuit Breaker -32A 3Ph Schindler Make
17. Contactors, Overload Relay – L & T
18. Step Down Transformer 24V Rectified DC
19. Air Remover.
NOTE: Along with machine any one grammage Forming Collar available.
YOUR SCOPE OF SUPPLY :
• POWER SUPPLY : 440V x 3PH x 50Hz
• MACHINE SIZE : 1300MMW X 1500MMD X 2100MM.H.
MULTI HEAD MACHINE COMPLETE AS UNDER
• S.S.304 L Fabrication
• 14 x 2 Bucket
• Bucket Capacity 1.5Ltr.
• 14 Load Cell – Indian Make
• 14 Vibrator Coil & 1 Main
• HMI-kinco Brand
• Grade – IP65
SPEED 20 to 60 PPM APPROX (As per gram)
ACCURACY + 0.5%
