Home Products Multi Head dropping machine
Weighing Capacity /
Weighing Capacity /
COD not available
Tea Packing Machine

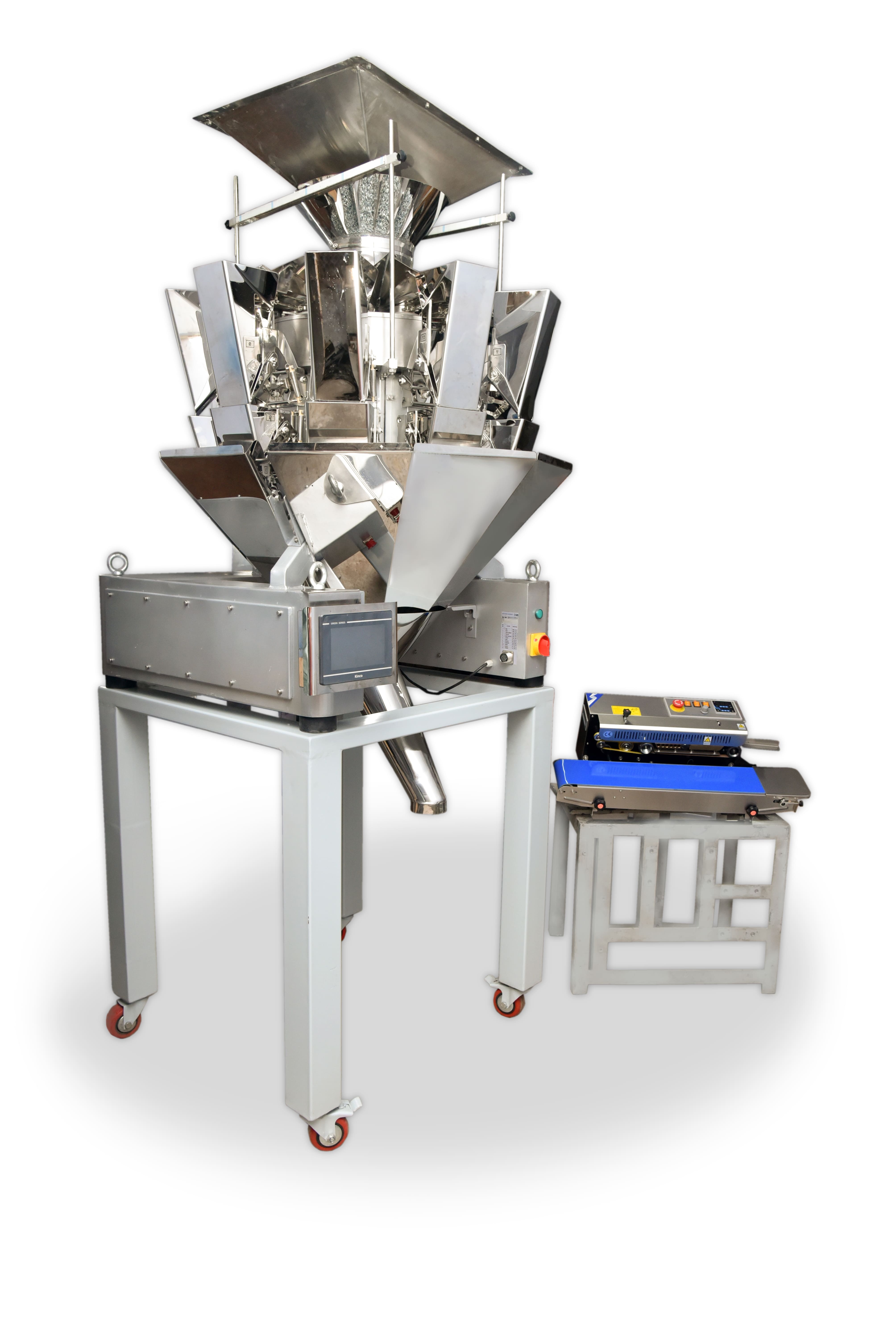

Multi Head dropping machine

Share with
Share this on :

Description

Product details

Weighing Capacity / Range (Per single dump) :- up to 2000g Maximum Volume For Weighing (Per single dump) :- Maximum 3000cc Weighing Speed (Max) :- 75 wpm Minimum Graduation :- 0.1gm / 0.2gm Total Screen Display (RCU) :- 7" Colour Display Weigh Cell :- Double-beam Strain Gauge Load Cell Number of Presets :- 50 Materials:- Product surfaces are made of stainless steel or other sanitary materials Machine Weight :- 350kg Options :- Various Options are available Power Consumption :- 200 - 240V 0.8kw https://youtube.com/shorts/DSOVSTSKqzA

Keywords

  • Filter tags

Other Solutions

Related Solutions

The rotary pick-fill-seal packing machine is a testament to advanced engineering and efficiency in packaging technology. With its seamless integration of picking, filling, and sealing functions, it delivers unparalleled speed and precision, minimizing manual intervention and reducing errors. TECHNICAL SPECIFICATIONS:  Applicable Bag Type: Flat bag, back seal bag, stand-up pouch, zipper bag  Workstation: 8 stations  Bag Size: Width: 80-240mm Length: 150-370mm  Filling Weight:< 1500g  Packing Speed:< 60 bags/min (depends on product packing condition)  Weight: 1000 kg  Overall Dimensions (LWH): 1724mm * 1486mm * 1600mm  Total Power: 2.62 kW (two heat sealing, without vacuum pump)  Driving Power: 380V three-phase five-wire 50HZ  Air Consumption: 20.4m³/min  PLC/HMI – Seimens  Pneumatics - Festo and airtac
View Details
CPFS-50 Rotary Pick Fill Seal/Premade Pouch Packing
Suitable to be packed any type of free flow granules packing in laminated packing materials. (Centre Sealing). PRODUCT : Granules GRAMMAGE : 5gms to 5kg. (Suggested 500gms to 5kg) BASIC MACHINE COMPLETE AS UNDER : Machine Height : 1300MM.W. x 2100MM.H. 1. M. S. Structure Fabricated Body with S S 304 covering 2. Motor Drive Assly - Innovance Make. Servo Motor- 1.5+1KV (Double Servo) 3. Gear Box – Bonfiglioliw (Model No. W63U19P80) B5 B3 Ratio – 10: 1 4. Paper Roll mounting Reel Bracket – 8 Nos. 5. Aluminium Roller-15 Nos. 6. Electric Control Panel - Motion Control (Innovance Make) 7. Electronic Pneumatic Control Panel – 7” HMI (Innovance Make) 8. Film Unwinding System - DC Motor 24VDC 9. Cam Setting Assly- - 12mm LN Gruve Bolt 10. Forming Collar Assly – S S 304 L 11. Temp. Controller Device – Autonics Make 12. Photocell - Panasonic 13. RFL Unit with Air Filter Lubrication Assly – Festo Make. 14. Festo Solenoids, Cylinders & Festo Pipe. 15. Rotary Switch - Kaycee, Indicating Lamp – L & T 16. Circuit Breaker -32A 3Ph Schindler Make 17. Contactors, Overload Relay – L & T 18. Step Down Transformer 24V Rectified DC 19. Air Remover. NOTE: Along with machine any one grammage Forming Collar available. YOUR SCOPE OF SUPPLY : • POWER SUPPLY : 440V x 3PH x 50Hz • MACHINE SIZE : 1300MMW X 1500MMD X 2100MM.H. MULTI HEAD MACHINE COMPLETE AS UNDER • S.S.304 L Fabrication • 14 x 2 Bucket • Bucket Capacity 1.5Ltr. • 14 Load Cell – Indian Make • 14 Vibrator Coil & 1 Main • HMI-kinco Brand • Grade – IP65 SPEED 20 to 60 PPM APPROX (As per gram) ACCURACY + 0.5%
View Details
MULTI HEAD WEIGH METRIC FORM FILL & SEAL MACHINE SERVO BASED
The Eco Series & VFFS machine can make centre sealed pouches, 3 side sealed pouches 4 side sealed pouches & gusset pouches from a roll of packaging materials of any heat-sealable laminate which can be printed or non-printed form. Heat-sealable laminate can be of a single layer, B.O.P.P., two layer, three layer or aluminium foiled type... The Eco Series bagger is an ideal pneumatic bagger to pack various products at a very high speed. This bagger is suitable to pack any material in a form of ne, small or big, even & uneven granules, powders, confectioneries, pesticides etc. Silent Features • Complete PLC based pneumatic automation system • Advance use friendly HMI (Touch Screen) operating • Variable speed for highest production • Digital programmable punching & cutting • Separate pneumatic panel for custom pressure setting • PLC based air pressure monitor system • Variable speed conveyer • Long life cutting blade BAGGER SIZE - S Max. Laminate width Volume Pro Series Output 420mm/Customized 1Kg / 1Ltr. / Customized @120 pouch per minute depending upon low rate & volume. BAGGER SIZE - M 520mm/Customized 2Kg / 2Ltr. / Customized @55 pouch per minute depending upon low rate & volume. BAGGER SIZE - L 700-800mm/Customized 5Kg / 5Ltr. / Customized @40 pouch per minute depending upon low rate & volume
View Details
Triple Servo Auger Metric VFFS
