rice packing machine

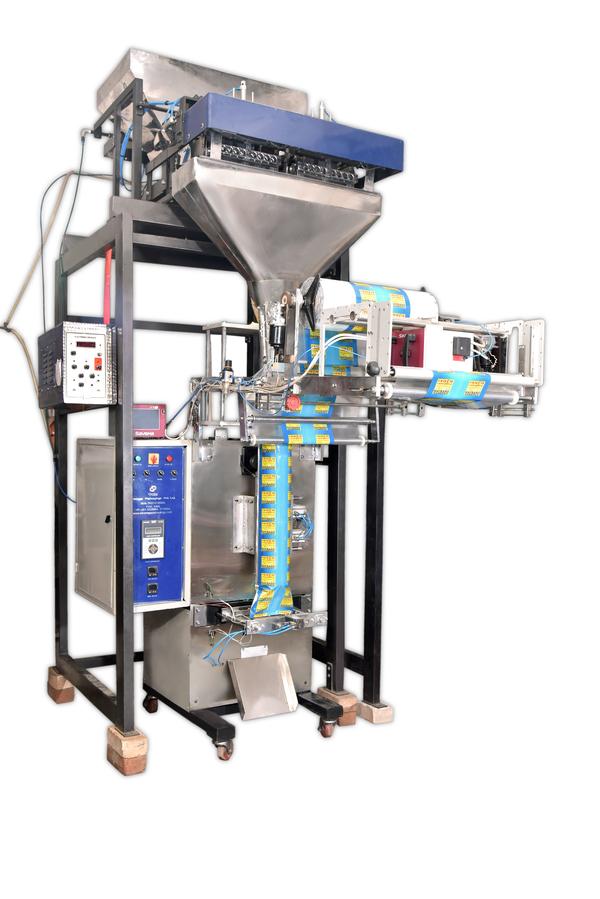

The machine operate on the principle of electric weigh metric system. On Weigh Metric Form Fill and Sealing Machine are ideal for filling dry, free flowing products like Sugar, Tea, Supari, Whole Spices, Rice, Pulses & all types of Namkeens, Fryms, Potato and Banana Chips etc. Capacity 20 to 1000g Sealing Type Centre seal or back side seal, 3 side seal, 4 side seal Film Size 160mm to 450mm width, any length can do Speed Depend on No. of Weighing Head. Voltage 1/2 HP Motor, 220v, 50 Hz Single Phase Packing Material Any heat sealable laminated film such as Polyester / Polypaper / Poly, Glassine / Poly, Polyester / Met / poly, Polyester / Foil / Poly, BOPP / Foil / Poly Approx. Weight 600 to 1000 Kg Air Pressure 7 Kg M/c. Dim. LxWXH(mm) 15000 * 1200 * 3200mm Optional Batch Coding Device, Level Sensor Device, Gas Flashing Arrangement, Screw Feed Conveyor Air Compressor 3 HP Double Piston

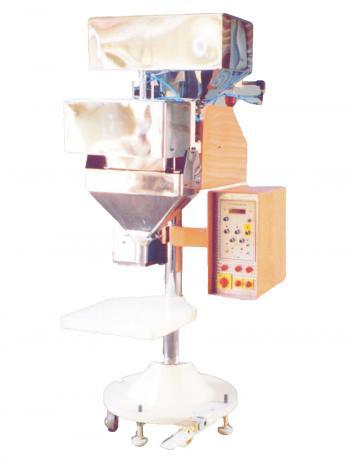

Semi automatic weigh based machine to drop dry, free flowing product like Sugar, Tea, Supari, Rice, Pulses, Whole Spices, all type of Namkeen & Fryms, Potato and Banana Chips, etc Dropping Range 25 to 1000g Speed Depend on weighing head

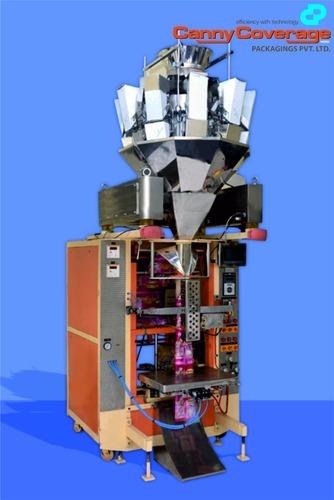

BASIC MACHINE COMPLETE AS UNDER : Machine Height : 1300MM.W. x 1800MM.H. 1. M. S. Structure Fabricator Body. 2. 2 Servo Motor 2KV 3. Motor Drive Assly. Gear Box. 4. Paper Roll mounting Reel Bracket & Alu.Roller 5. Electric Control Panel 6. Electronic Pneumatic Control Panel. 7. Pouch Lifting Table 8. Film Unwinding System. 9. Cam Setting Assly. 10. Forming Collar Assly. 11. Temp. Controller Device. 12. Photocell Registered 13. RFL Unit with Air Filter Lubrication Assly. 14. Festo Solenoids, Cylinders & Festo Pipe. 15. Rotary Switch, Kaycee Switch, Indicating Lamp. 16. Fuse and Fuse Base. 17. Production Counter. 18. Cromption Make Top & Base 10A. 19. Contactors, Overload Relay 20. Step Down Transformer 24V Rectified DC 21. Unwinding Clutch 24V DC 22. S.S.. Air Filter. 23. Air Remover. NOTE: Along with machine any one grammage Forming Collar available. YOUR SCOPE OF SUPPLY : • POWER SUPPLY : 440V x 3PH x 50Hz • MACHINE SIZE : 1300MMW X 1500MMD X 1800MM.H. MULTI HEAD MACHINE COMPLETE AS UNDER • S.S.304 Fabrication • 14 x 2 Bucket • Bucket Capacity 1.5Ltr. • 14 Load Cell • 14 Vibrator Coil & 1 Main • HMI-kinco Brand Speed:- Up to 90 PPM
