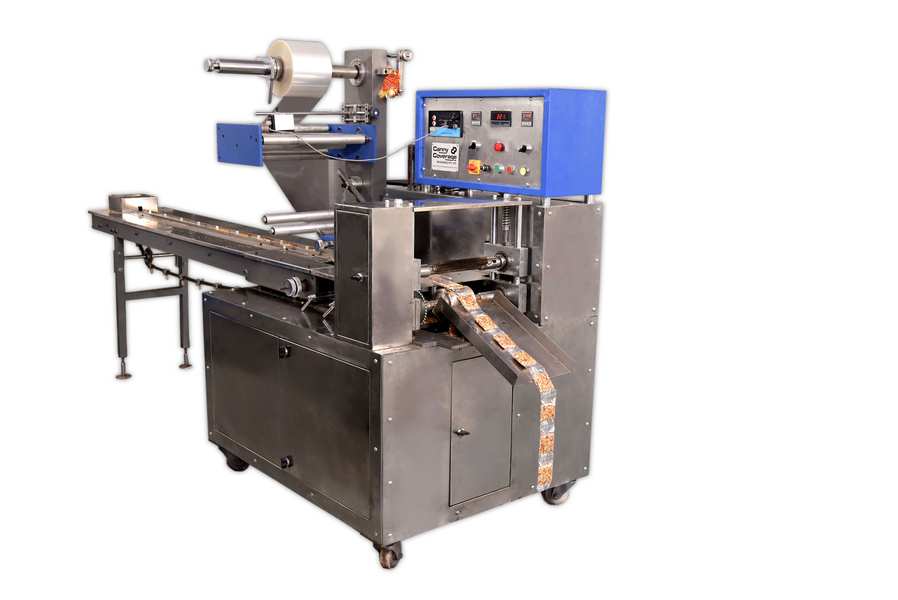

chikki packing machine

TECHNICAL SPECIFACATION:- 1. Machine body covering in S.S.304 2. PRODUCT – Surgical Item 3. Speed – 0 to 100 Pouches per minutes (variable) 4. Temp. Controller – Multispan Make 5. Heater – High Density 6. Drive – Servo (Inovance Make) 7. Gears – EN8 Material 8. Proxy – Omron Make 9. HMI Panel 10.Motion Control Penal – Trio Make 11.I Mark Sensor – DK 20 12.Bearing – SKF Make 13.Gear Box – Varvale Make 14.Power – 220V. (3 Phase) 15.Total KW. – 3 KW. 16.Machine Dimension – H-1500mm x L-3500mm, W – 1050mm (Aproxx)

Suitable for packing Biscuits, Chocolates, Soaps, Stationary Item, Syringes, Ball Bearing and any other Rounded, Square Shaped Solid Products. Feeding System Automatic and Manual Sealing Type Centre seal / 4 side Packing Size Upto 300mm(L), 180mm(W), 100mm(H) Packing Speed 0-200 pouches per min, Variable Power (W) 3kW, 1HP AC with AC Drive Voltage (V/Hz) 220 AC(Single Phase) Heater Load 400W * 2 Nos., 200W * 2 Nos. Dim. LxWXH(mm) 1800 * 1080 * 1700mm Approx. Weight 700 Kg Optional Attachment Batch Coding Mahchine
